Simple Document Scanner using Python and OpenCV
To build a simple document scanner using Python and OpenCV, we need to follow three steps:
- Scan the document remove any noise from the image and find the edges.
- Find the document’s contour from the image.
- Get the top view or bird’s eye perspective of the image with the calculated boundary points of the document.
Let’s get started
The following packages are required to build our document scanner:
imutils
numpy
opencv-python
scikit-image
Create a virtual environment and install these packages.
1. Finding edges
One way of taking the images as input for our program is through command-line argument and this can be achieved by using the argparse module.
import argparse
parser = argparse.ArgumentParser()
parser.add_argument('-i', '--image', required=True, type=str, help='Path to the Image')
args = vars(parser.parse_args())
image_path = args['image']

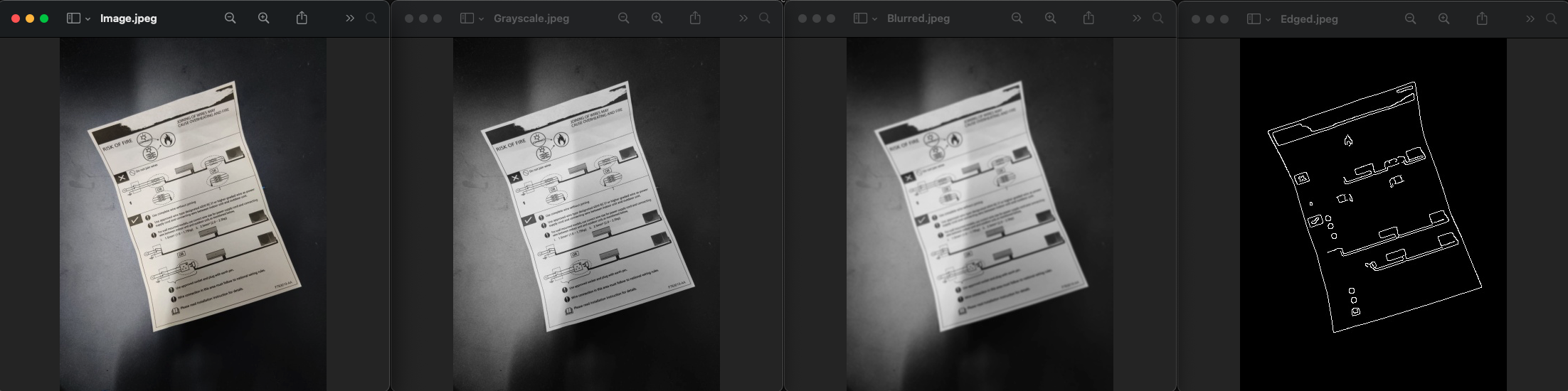

The above code will help us get the image as input from the user. Now with the image path, we can read the image using the imread method from opencv package. To find the edges of our document we will use the Canny edge detection algorithm. Before, that we must convert our image to grayscale. That helps in identifying the edges more easily and remove any noise by smoothening it
image = cv2.imread(image_path)
ratio = image.shape[0] / 500.0
orig = image.copy()
image = imutils.resize(image, height=500)
gray = cv2.cvtColor(image, cv2.COLOR_BGR2GRAY) # Convert image to grayscale
blurred = cv2.GaussianBlur(gray, (5,5), 0) # Image smoothening for noise removal
edged = cv2.Canny(blurred, 100, 250) # Edge detection
cv2.imshow('Original', image)
cv2.imshow('Gray', gray)
cv2.imshow('Blurred', blurred)
cv2.imshow('Edged', edged)
cv2.waitKey(0)
cv2.destroyAllWindows()
2. Finding contours
Contour is a simple curve joining all the continuous points having same color or intensity. From the edged image we can find the contours and display it in our original image. While finding contours, we may find contours other than the document itself, and we must make sure correctly identify the document’s contour.
contours = cv2.findContours(edged.copy(), cv2.RETR_LIST, cv2.CHAIN_APPROX_SIMPLE)
contours = imtutils.grab_contours(contours)
contours = sorted(contours, key=cv2.contourArea, reverse=True)
for contour in contours:
perimeter = 0.02 * cv2.arcLength(contour, True)
approx = cv2.approxPolyDP(contour, perimeter, True)
if len(approx) == 4:
target = approx
break

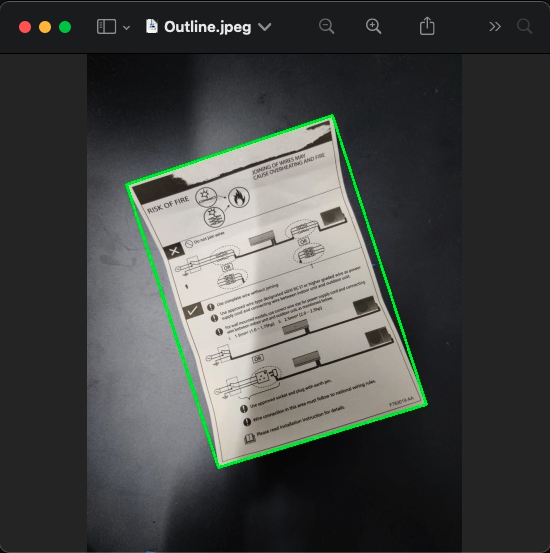

cv2.drawContours(image, [target], -1, (0, 255, 0), 2)
cv2.imshow("Outline", image)
cv2.waitKey(0)
cv2.destroyAllWindows()
The findContours functions returns a list of contours. We sort the list in reverse order using the contourArea function as key. This gives us the contour with the maximum area. Then from the contours we approximate each contour in a loop for a closed shape. This is done by the approxPolyDp function. We look for shape that is a square or a rectangle, hence we check the length of the approximate shape to be 4.
3. Bird’s eye view
Once we get the approximates, we can identify the four corner points of the shape. We write a function to achieve this.
def order_points(pts):
"""Order the given set of coordinates as top-left, top-right, bottom-right and bottom-left"""
rect = np.zeros((4, 2), dtype='float32')
_sum = np.sum(pts, axis=1)
rect[0] = pts[np.argmin(_sum)]
rect[2] = pts[np.argmax(_sum)]
_diff = np.diff(pts, axis=1)
rect[1] = pts[np.argmin(_diff)]
rect[3] = pts[np.argmax(_diff)]
return rect
The logic we get the sum and difference of the points along the axis 1. The one with the minimum sum must be the top-left and the maximum would be the bottom-right. The one with the minimum difference must be the top-right and the maximum would be the bottom-left.

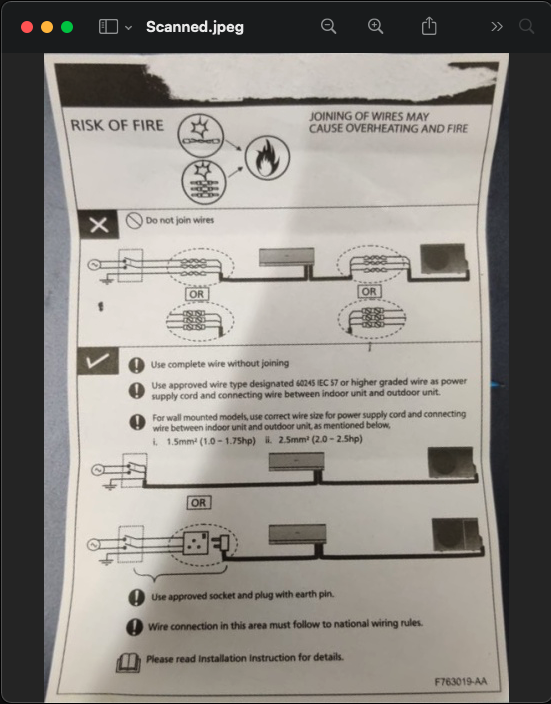

Once we get the four points, we can obtain the top-view by using the getPerspectiveTransform method.
rect = order_points(pts)
tl, tr, br, bl = rect
width_a = np.sqrt(((tl[0] - tr[0]) ** 2) + ((tl[1] - tr[1]) ** 2))
width_b = np.sqrt(((bl[0] - br[0]) ** 2) + ((bl[1] - br[1]) ** 2))
width = max(int(width_a), int(width_b))
height_a = np.sqrt(((tl[0] - bl[0]) ** 2) + ((tl[1] - bl[1]) ** 2))
height_b = np.sqrt(((tr[0] - br[0]) ** 2) + ((tr[1] - br[1]) ** 2))
height = max(int(height_a), int(height_b))
dest = np.array([
[0, 0],
[width-1, 0],
[width-1, height-1],
[0, height-1]
], dtype='float32')
mat = cv2.getPerspectiveTransform(rect, dest)
warped = cv2.warpPerspective(image, mat, (width, height))
cv2.imshow("Original", imutils.resize(orig, height=650))
cv2.imshow("Scanned", imutils.resize(warped, height=650))
cv2.waitKey(0)
cv2.destroyAllWindows()
Github code.
