Face Detection using Python and OpenCV

Hello, today we are going to build a simple face detection application using Python and OpenCV. We will be doing this using the dnn module from opencv.

To build the application we will be in need of the model itself. To build the model we require two files:

The .caffemodel file which contains the model’s weights
The text file describing the model’s architecture

Once we have the above files, we can start building the application

Let’s get started

The following packages are required to build our face-detection application:

imutils
numpy
opencv-python
scikit-image

Create a virtual environment and install these packages.

Getting the Image

We take the input as command-line arguments and as I mentioned previously in my blog post, we will be using the argparse module.

parser = argparse.ArgumentParser('FaceDetection using Python and OpenCV')
parser.add_argument('-i', '--image', help='Path to the Image file', required=True, type=str)
args = parser.parse_args()

Loading the model

Now we load the model from the .caffemodel and the text file

net = cv2.dnn.readNetFromCaffe('resources/deploy.prototxt.txt', 'resources/res10_300x300_ssd_iter_140000.caffemodel')

Getting the blog from Image and finding the dectections

Next, we read the image and create a blog from the Image. The process of getting the blob from the image is nothing, but a series image processing techniques. Those techniques involve mean subtraction, scaling and optional channel swapping.

image = cv2.imread(image_path)
(heigth, width) = image.shape[:2]
blob = cv2.dnn.blobFromImage(image=cv2.resize(image, (300, 300)), size=(300, 300), scalefactor=1.0,
                             mean=(104.0, 177.0, 123.0))

Now we give the blob as the input to the model and get the detections

net.setInput(blob)
detections = net.forward()

Outlining the result

The detection result is four layer matrix in which the second layer contains the frame, third layer contains the number of detections, and the fourth layer contains the class ID, class score, confidence score, and the coordinates in the format x, y, w, h

We loop through each detection and check its confidence score against a threshold, if the score is greater than the threshold we outline it in the original image. To outline the face in the image, we extract the coordinates and display a box using those coordinates with the confidence score.

for i in range(0, detections.shape[2]):
    confidence = detections[0, 0, i, 2]
    if confidence > 0.5:
        box = detections[0, 0, i, 3:7] * np.array([w, h, w, h])
        startX, startY, endX, endY = box.astype("int")
        text = "{:.2f}%".format(confidence * 100)
        y = startY - 10 if startY - 10 > 10 else startY + 10
        cv2.rectangle(image, (startX, startY), (endX, endY), (0, 0, 255), 2)
        cv2.putText(image, text, (startX, y), cv2.FONT_HERSHEY_SIMPLEX, 0.45, (0, 0, 255), 2)

cv2.imshow("Output", image)
cv2.waitKey(0)
cv2.destroyAllWindows()

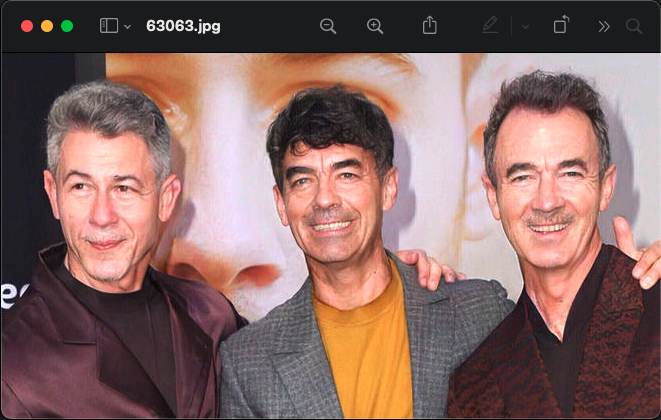

Input Image

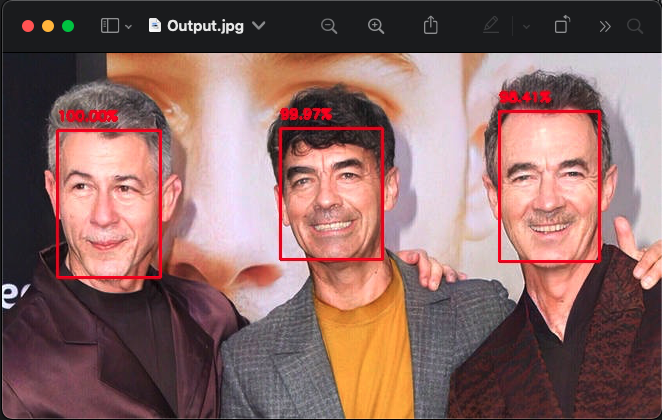

Output Image

Detecting faces in real-time

We follow the same process but instead of reading an image we read the frames from the camera, and we make predictions on each of those frames and display them in real time

net = cv2.dnn.readNetFromCaffe('resources/deploy.prototxt.txt',
                               'resources/res10_300x300_ssd_iter_140000.caffemodel')
vc = VideoCapture(0)
while:
    _, image = vc.read()
    (heigth, width) = image.shape[:2]
    blob = cv2.dnn.blobFromImage(image=cv2.resize(image, (300, 300)), size=(300, 300), scalefactor=1.0,
                                 mean=(104.0, 177.0, 123.0))
    net.setInput(blob)
    detections = net.forward()
    for i in range(detections.shape[2]):
        confidence = detections[0, 0, i, 2]
        if confidence > 0.5:
            box = detections[0, 0, i, 3:7] * np.array([width, heigth, width, heigth])
            (x1, y1, x2, y2) = box.astype('int')
            text = f'{confidence * 100 :.2f}%'
            cv2.rectangle(image, (x1, y1), (x2, y2), (255, 0, 0), 1)
            if y1 - 10 > 10:
                x, y = x1 + 5, y1 - 10
            else:
                x, y = x1 + 5, y1 + 10
            y = y1 - 10 if y1 - 10 > 10 else y1 + 10
            cv2.putText(image, text, (x, y), cv2.FONT_HERSHEY_DUPLEX, 0.55, (0, 0, 255), 1)
    cv2.imshow('Ouput', image)
    key = cv2.waitKey(1)
    if key & 0xFF == ord('q'):
        break
vc.release()
cv2.destroyAllWindows()

We can also provide video file path to the VideoCapture class.

vc = VideoCapture('/path/to/the/video/file')

Github code
